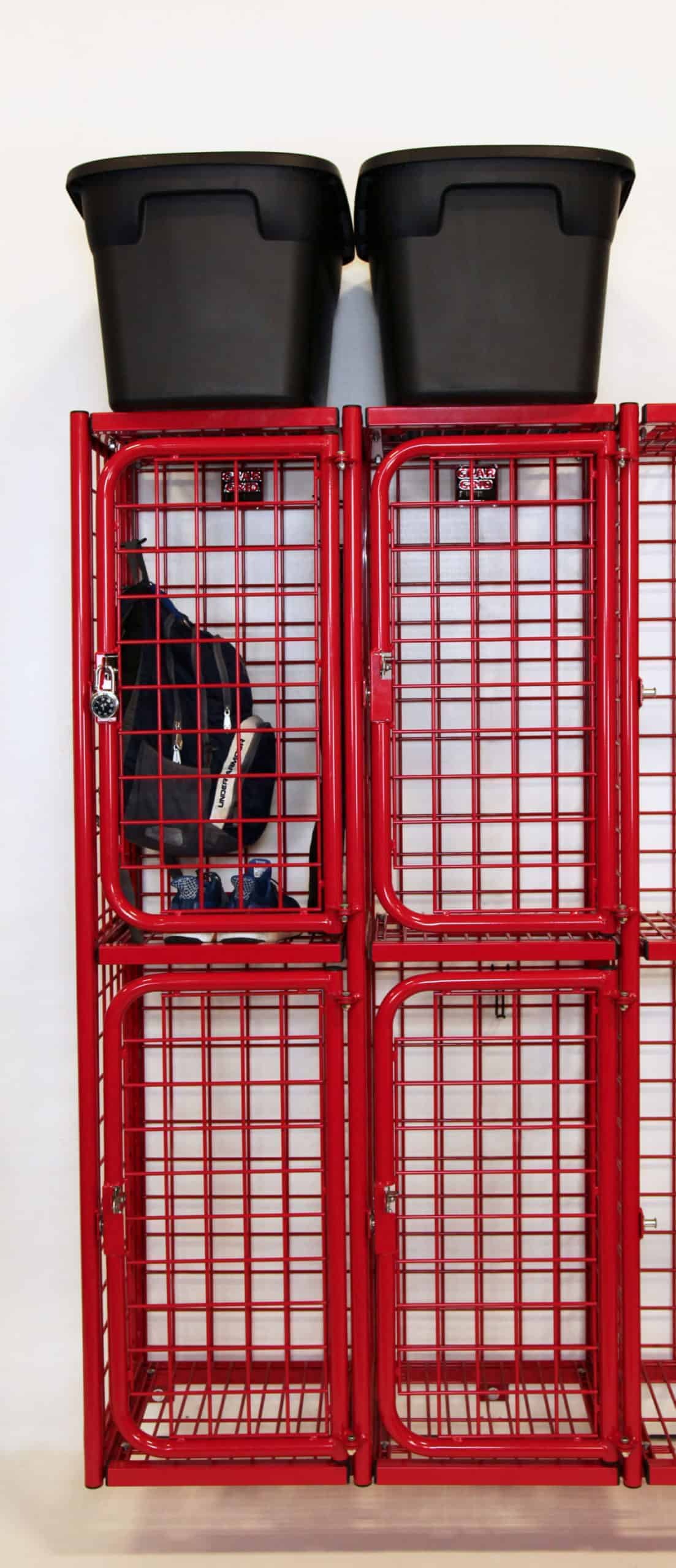

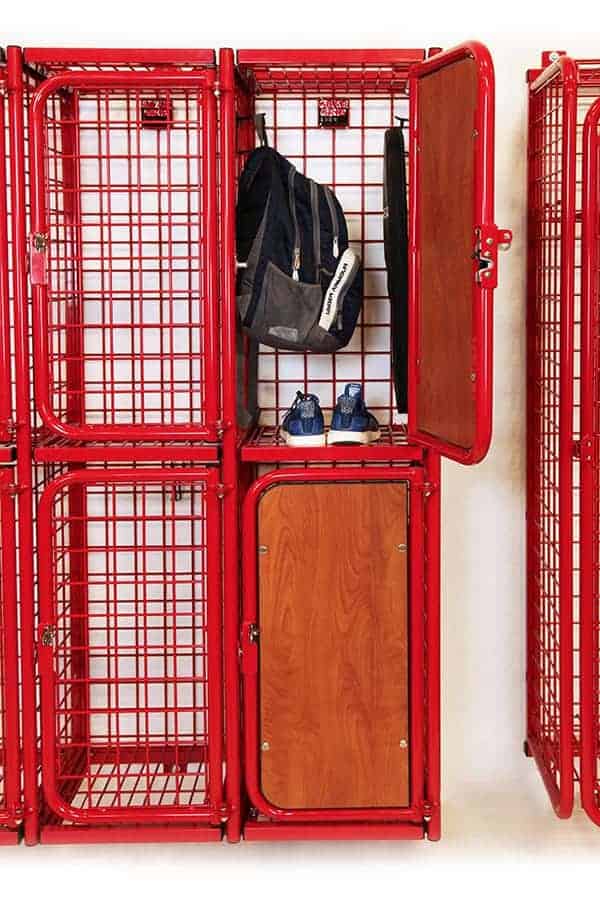

Added locker openings provide space where full height, individual lockers may not be allowed.

Available Sizes:

Width – 18”, 24″
Depth – 20”
Height – 74-½”, 86-½”

Design Features:

  • Frame: Heavy-duty 1-¼” OD, 16-gauge steel tube
  • Body Panels: High-strength ¼” steel wire, 3” x 3” square pattern
  • Top, Bottom & Tier Divider: Full-width and depth constructed of high-strength ¼” steel wire. Mechanically secured in a fixed position
  • Secure Doors (Optional): Heavy-duty, welded 1-¼” OD, 16-gauge steel tube with 3″ x 3″ grid infill or heavy-duty, welded 1-¼” OD, 16-gauge steel tube with solid panel MDF core laminate
  • Hooks: Three apparel hooks per locker opening
  • Latch: Heavy-duty and secure rotary/slam latch with padlock hasp, lock not included
  • Nameplate: 20-gauge sheet metal, accepts custom printed nameplate
  • Mounting Brackets: 11-gauge steel wall mount brackets
  • Finish: Super Durable TGIC powder coat
  • Colors: 15 standard colors
  • Shipping: Ships knocked down for ease of handling and reduced shipping costs
  • Assembly: With simple tool it’s fast and easy
