Description
The open grid design promotes maximum air movement, which minimizes odor build-up and allows damp items to dry faster. Above-floor mounting eliminates the need for a separate base and makes cleaning easier than ever. Integrated, hinged seat eliminates the need for additional benches, creating a more open floor plan.
Available sizes:
Width – 18″, 24″ and 30″
Depth – 30-½”
Height – 70″ (77″ to 80″ overall height when mounted)
Design Features:
- Frame: Heavy-duty 1-¼” OD, 16-gauge steel tube
- Body Panels: High-strength ¼” steel wire, 2″ x 2″ square grid pattern
- Back Grids (Optional): High-strength ¼” wire, 2″ x 2″ square grid pattern
- Secure Doors (Optional): Heavy-duty, welded 1-¼” OD, 16-gauge steel tube with 1.5″ x 1.5″, 8-gauge welded wire panel or heavy-duty, welded 1-¼” OD, 16-gauge steel tube with solid panel MDF core laminate
- Shelves/Hooks: Heavy-duty, full-width, ¾” MDF core laminate or HDPE mounted to side panels with heavy-duty hook mounts
- Adjustability: Shelves adjustable in 2″ increments

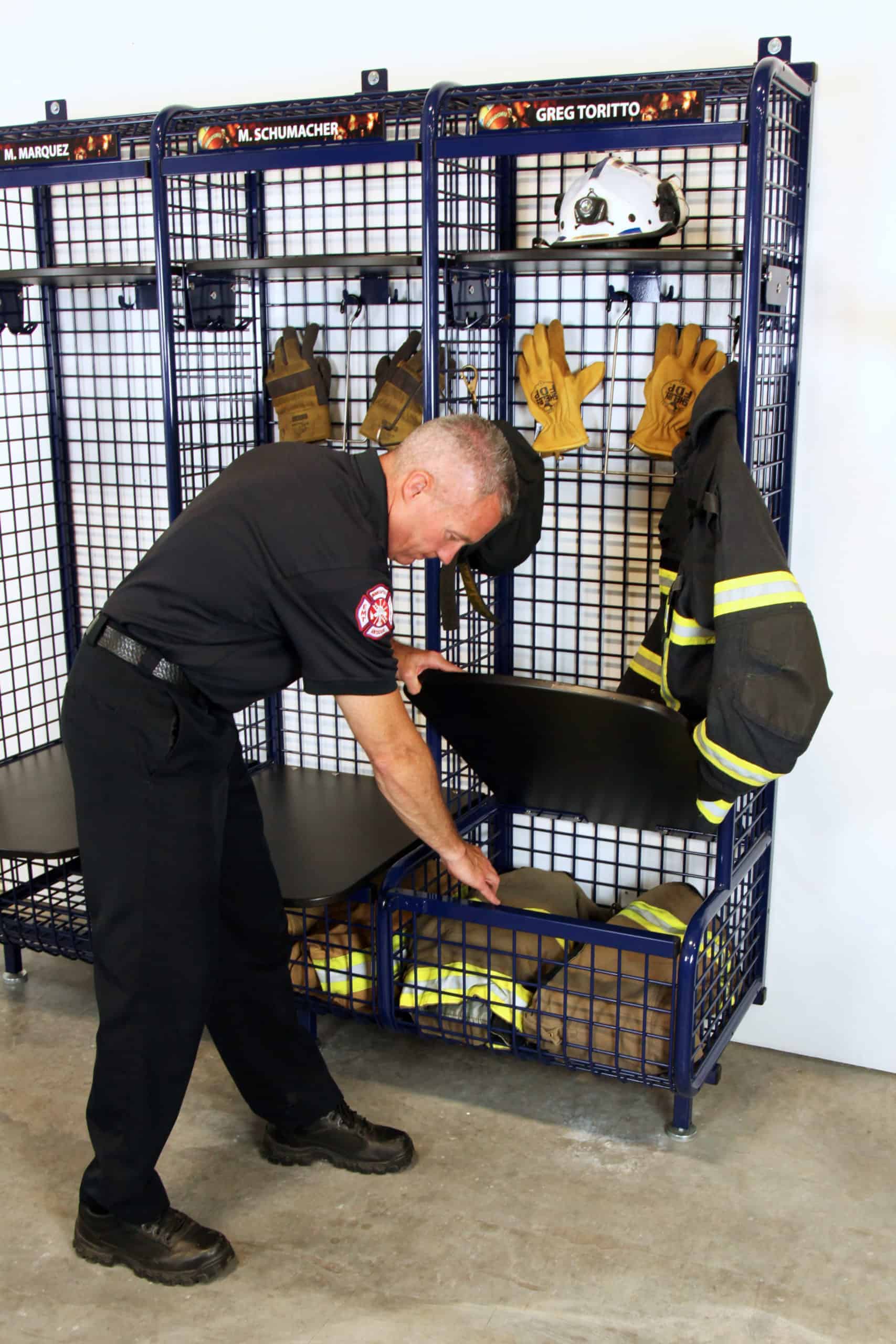

- Seat: Integrated, lifting, full-width and depth seat (¾” MDF core laminate or HDPE), mounted to heavy-duty, welded hinge
- Nameplate Holder: 20-gauge sheet metal. 2″ x 12-1/8″ Nameplate Holder for 18″, 24″ & 30″ lockers with Secure Doors and 24″ & 30″ lockers without Secure Doors. 2″ x 8-1/8″ Nameplate Holder for 18″ lockers without Secure Doors. All Personnel Locker Nameplate Holders are placed on top of each locker opening. *Note: Custom printed nameplate sold separately.
- Mounting: Wall mount, floor mount or mobile (18″ and 24″ only)
- Finish: Super Durable TGIC powder coat
- Colors: 7 standard colors
- Shipping: Ships knocked down for ease of handling and reduced shipping costs
- Assembly: With simple tool it’s fast and easy
