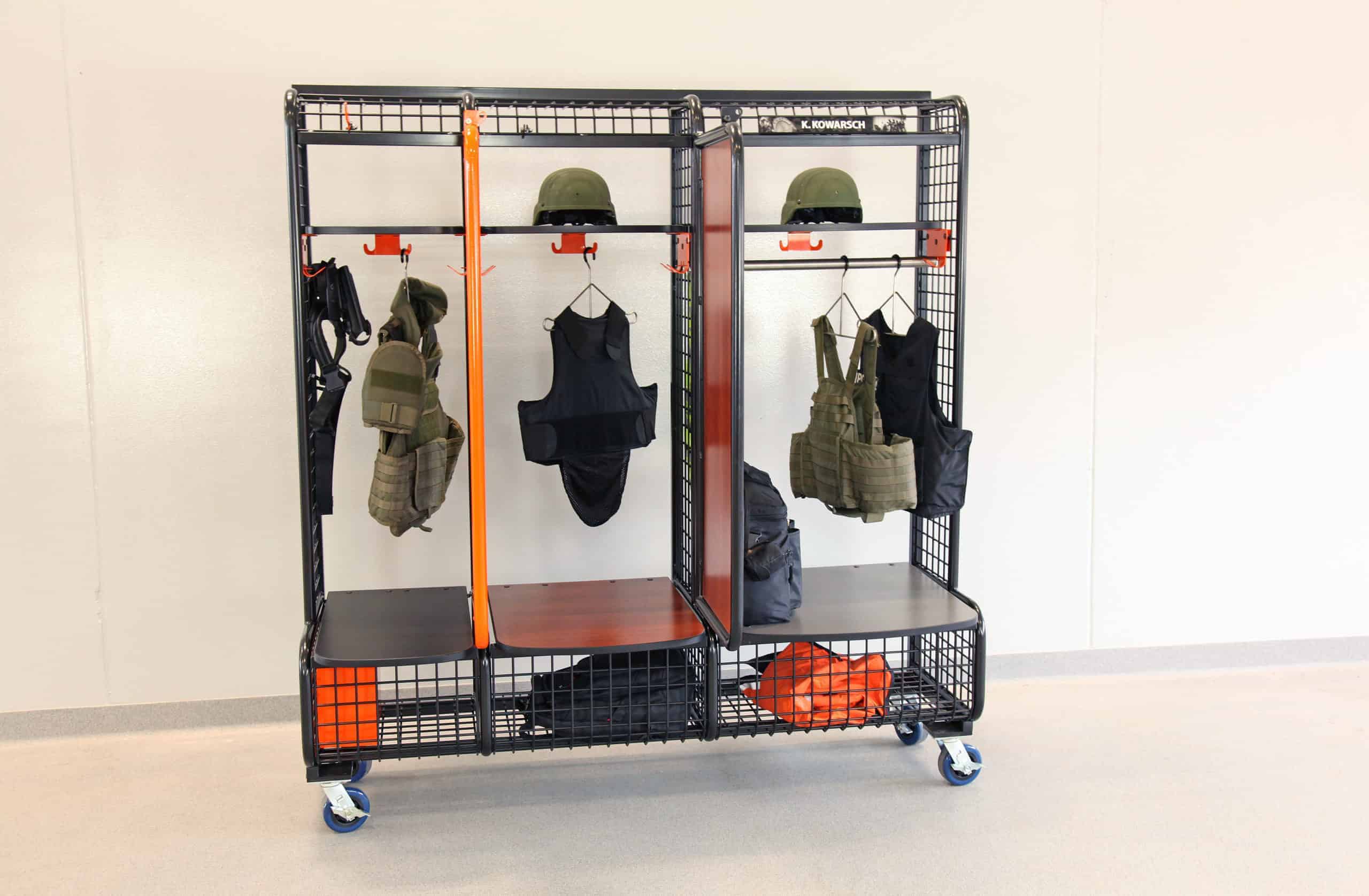

The open grid pattern provides maximum airflow for quick drying of tactical gear in preparation for the next call. Each locker opening includes an integrated, hinged lifting seat that allows for the storage of more gear.

Available sizes:

Width – 18″, 24″ and 30″
Depth – 30-½”
Height – 70″ (77″ to 80″ overall height when mounted)
*Note: Mobile Lockers only available in 18″ and 24″ widths

Design Features:

  • Frame: Heavy-duty 1-¼” OD, 16-gauge steel tube
  • Body Panels: High-strength ¼” steel wire, 2″ x 2″ square grid pattern
  • Welded Base: Heavy-duty 1-¼”, 16-gauge square steel tubing. Mobile lockers include four heavy-duty, locking casters. Island lockers include adjustable floor mounts
  • Back Grids (Optional): High-strength ¼” wire, 2″ x 2″ square grid pattern
  • Secure Doors (Optional): Heavy-duty, welded 1-¼” OD, 16-gauge steel tube with 1.5″ x 1.5″, 8-gauge welded wire panel or heavy-duty, welded 1-¼” OD, 16-gauge steel tube with solid panel MDF core laminate
  • Shelves/Hooks: Heavy-duty, full-width, ¾” MDF core laminate or HDPE mounted to side panels with heavy-duty hook mounts
  • Adjustability: Shelves adjustable in 2″ increments
  • Seat: Integrated, lifting, full-width and depth seat (¾” MDF core laminate or HDPE) mounted to heavy-duty, welded hinge
  • Nameplate: 20-gauge sheet metal, accepts custom printed nameplate
  • Mounting: Wall mount, floor mount or mobile (18″ and 24″ only)
  • Finish: Super Durable TGIC powder coat
  • Colors: 9 standard colors
  • Shipping: Ships knocked down for ease of handling and reduced shipping costs
  • Assembly: With simple tool it’s fast and easy
