Tubular Frame Wall

Tubular Frame Wall

*shipping not included

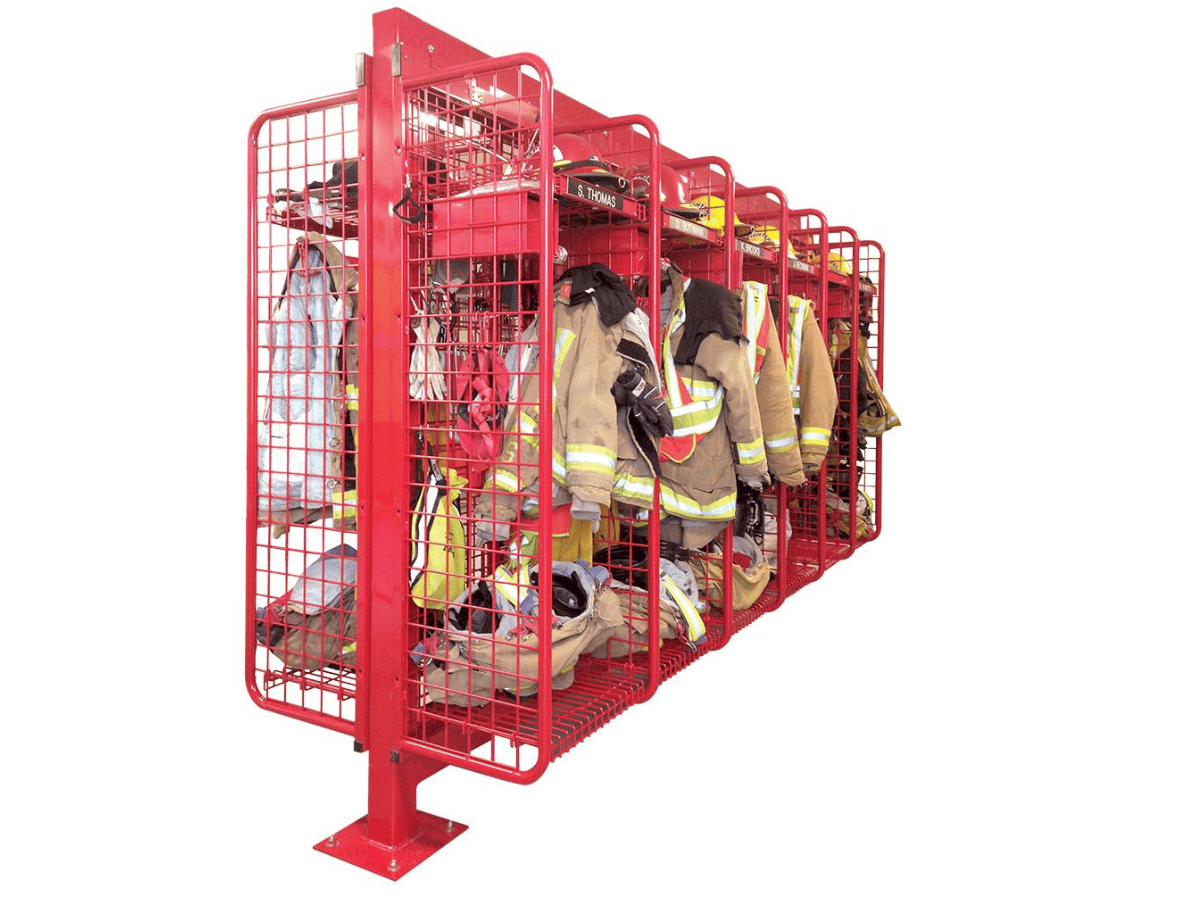

The GearGrid Tubular Frame Wall provides an additional and alternative mounting option for our Standard Wall Mount Lockers. The structure uses heavy-duty floor mounting plates to securely attach the frame structure to the floor in any desired location, while maintaining the benefits of typical wall mount installation.

Add to quote



When compared to building a block or framed wall, the Tubular Frame Wall provides the additional benefits of reduced cost, improved airflow and enhanced light flow in the room. The Tubular Frame Wall allows lockers to mount on one or both sides of the structure, and will be engineered for your desired layout, locker size and quantity.

Available Sizes:

Determined by locker layout


Units shall be welded at all applicable joints. Use of fasteners will only be required to allow for knock-down shipping, securing units to mounting surface and on applicable accessories.

  • Vertical Posts: 4″ x 4″, .250″ wall thickness ASTM A513 steel tube
  • Floor Mounting Plates: ½” steel plate welded to vertical posts. 1316” mounting holes as needed
    *Note: Mounting plate hole configurations subject to locker layout
  • Horizontal Frames: 4″ x 4″, 0.1875″ wall thickness ASTM A513 steel tube. Frames mechanically fastened to vertical posts with supplied or identified hardware
    *Note: If Power Bars (Electric Raceway) are used, top horizontal frame will be 6″ H x 4″ W, 0.1875″ wall thickness steel tube

Design Features:

  • Height: 86″H (without Power Bars) and 88.25″H (with Power Bars)
  • Finish: Super Durable TGIC powder coat
  • Colors: 7 standard colors
  • Shipping: Ships knocked down for ease of handling and reduced shipping costs
  • Assembly: With simple tool it’s fast and easy
